One person enough to complete cable continuity check.
The function of probing the audio and tracing the cable.
Check network cable faults, such as open , short , jumper wire, reverse connection or cross-talk interference.
Measure cable length and determine the distance of open and short circuit.
Dynamically calibrate cable length and make length measurement as accurate as 95% .
Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.

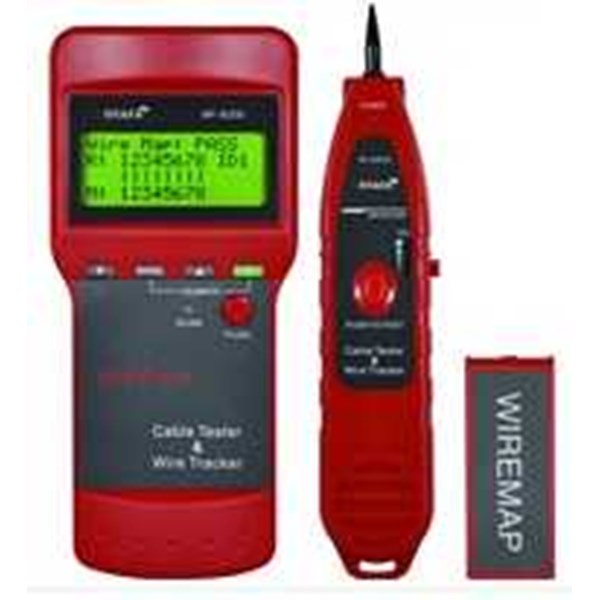

Specifications Multi Function Network Cable Tester NF8208 :
Overall dimension: Main tester: 180× 80× 40mm; receiver: 218× 46× 29mm; Remote identifier: 77× 31× 21mm.
Power: Main tester uses 6V DC for power supply; Receiver uses 9V battery for power supply .
Display: Special 4 x 16 character big screen LCD lattice ( valid visual field 61.6 x 25.2mm) .
Type of cable tested: STP/ UTP twin twisted cable, coaxial cable, telephone line.
Type of cable detected: 5E, 6E, telephone wire, coaxial cable and other metal wires.
Ambient temperature in work: -10º C~ + 60º C
Tester Port: Tester RJ45 master port ( M) , tester LOOPBACK RJ45 port ( L) , hunting RJ45 port ( SCAN) ; Remote identifier RJ45 port ( R) , The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.
Length Measurement of Twin Twisted Cable: Scope: 1~ 350 M ( 3 ~ 200 ft) ; Calibration accuracy: 3% ( + / - 0.5M or + / - 1.5 ft) ( calibrating cable > 5M) ; Shipment accuracy: 5% ( + / - 0.5M or + / - 1.5 ft) . ( AMP, AT& T Class 5 cable) Display: M or ft.
Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M.
Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, reverse connection, cross-over or cross-talk interference.
Locating Cable: 8 Remote identifier test jacks ( ID 1 e ID 8) .
Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.
Kami Jual Multi Function Network Cable Tester NF8208, silahkan diorder ....
