LCD, the display effect is more direct, more visual and clearer.
The wire can be hunted directly in connection with Ethernet switch/ router / PC terminal of different models in startup.
Test 5E, 6E, telephone wire, coaxial cable, USB cable, 1394 line and other cables for troubleshooting.
RJ45/ RJ11/ BNC/ USB/ 1394 and other ports are included and the complex switch is not required.
Select startup/ shutdown function and backlight display function.
Sound hint function of different circuit status
9V battery for power supply and low-voltage hint function

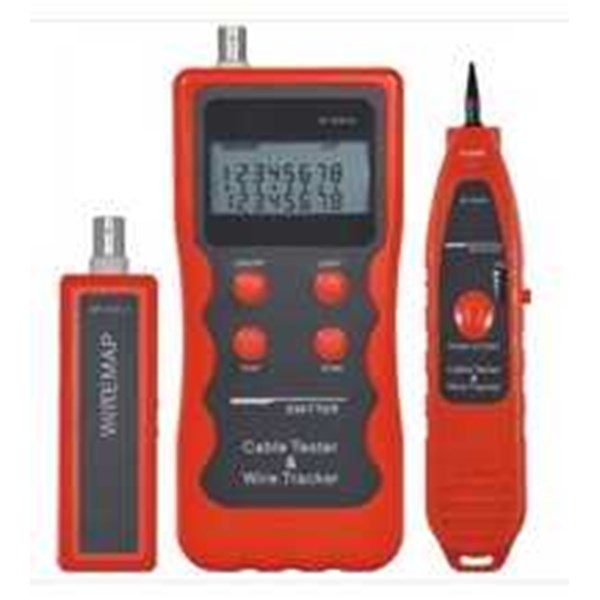

Specifications Kabel Tester Multifungsi NF838 :
Overall dimension: Emitter: 185x80x32mm; receiver: 218x46x29mm; Remote identifier: 107x30x24mm
Power: Two laminated batteries of 9V
Display: Large screen LCD segmented display ( effective visual area 54x26mm)
Type of cable tested: RJ 45/ RJ11/ BNC/ USB/ 1394 and other different types
Type of cable detected: RJ 45/ RJ11/ BNC/ USB/ 1394 and other metal wires
Ambient temperature in work: -10º C~ + 60º C
Signal transmission distance: More than 3km
Location of wire order and cable failure: Failure test, open circuit, short circuit, reversed position,
Kami jual Kabel Tester Multifungsi NF838, silahkan diorder
