Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department

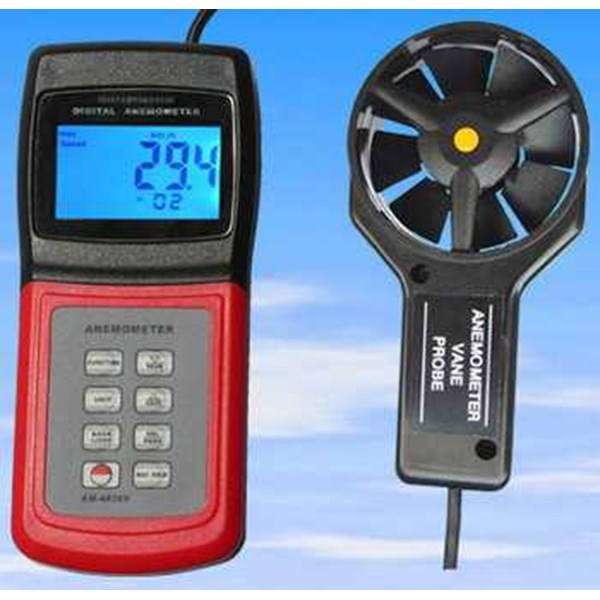

SPECIFICATIONS Alat Ukur Kecepatan Angin Anemometer Digital AM-4836C :
General Specifications :
Display: 0.5" ( 13 mm) 4-digit LCD
Measurement units: Air Velocity: m/ s, km/ h, ft/ min, knots Air Flow: CMM ( m / min) ; CFM ( ft / min)
Beaufort Scale: Force
Wave Height: m
Direction: from the North direction
Temp: C & F
Data hold: Maximum Value
Data memorized: 24 groups
Sampling rate: reading per second approx
Sensors: Air velocity/ flow sensor: 3-cup probe
Direction probe: Low friction probe;
Temperature sensor: Precision thermometer
Automatic Power off : 0-9 minutes set by users
Data Output: RS 232 C serial interface
Operating Temperature: 14 F to 140 F ( -10 C to 60 C)
Operating Humidity: Max. 80% RH
Power Supply: 4x1.5AAA size
Weight: 260g ( 0.57lb) including batteries & probe
Dimensions: Instrument: 156x67x28mm;
Velocity sensor: 65x65x115mm;
Direction sensor: 86x69x115mm
Optional Accessories: Cable + Software for RS232C or USB Range
Specifications Alat Ukur Kecepatan Angin Anemometer Digital AM-4836C :
Air Velocity
Range : 0.4-45.0
Resolution : 0.1 m/ s
Accuracy : ( 2% + 0.1m/ s)
m/ s ( meters per sec) :
Range : 1.4-162.0
Resolution : 0.1 km/ hr
Accuracy : ( 2% + 0.1km/ hr)
km/ h ( kilo-meters/ hour) :
Range : 80-8860
Resolution : 0.1 ft/ min
Accuracy : ( 2% + 1ft/ min)
ft/ min ( feet per minute) :
Range : 0.8-88.0
Resolution : 0.1 knots
Accuracy : ( 2% + 0.1 nots) knots ( nautical MPH)
Air Flow:
Range : 0-9999
Resolution : 0.001 to1
Accuracy : ( 2% + 1m / min)
CMM ( cubic meters/ min)
Range : 0-9999
Resolution : 0.001 to1
Accuracy : ( 2% + 1ft / min)
CFM ( cubic ft/ min)
Range : 0-12
Resolution : 0.1
Accuracy : 0.5
Beaufort Scale
Range : 0-360
Resolution : 22.5
Accuracy : 22.5
Direction
Range : 0-14
Resolution : 0.1
Accuracy : 0.1
Wave Height
Range : 14 - 140
Resolution : 0.1
Accuracy : 0.9
Air Temperature
Range : -10-60
Resolution : 0.1
Accuracy : 0.5
